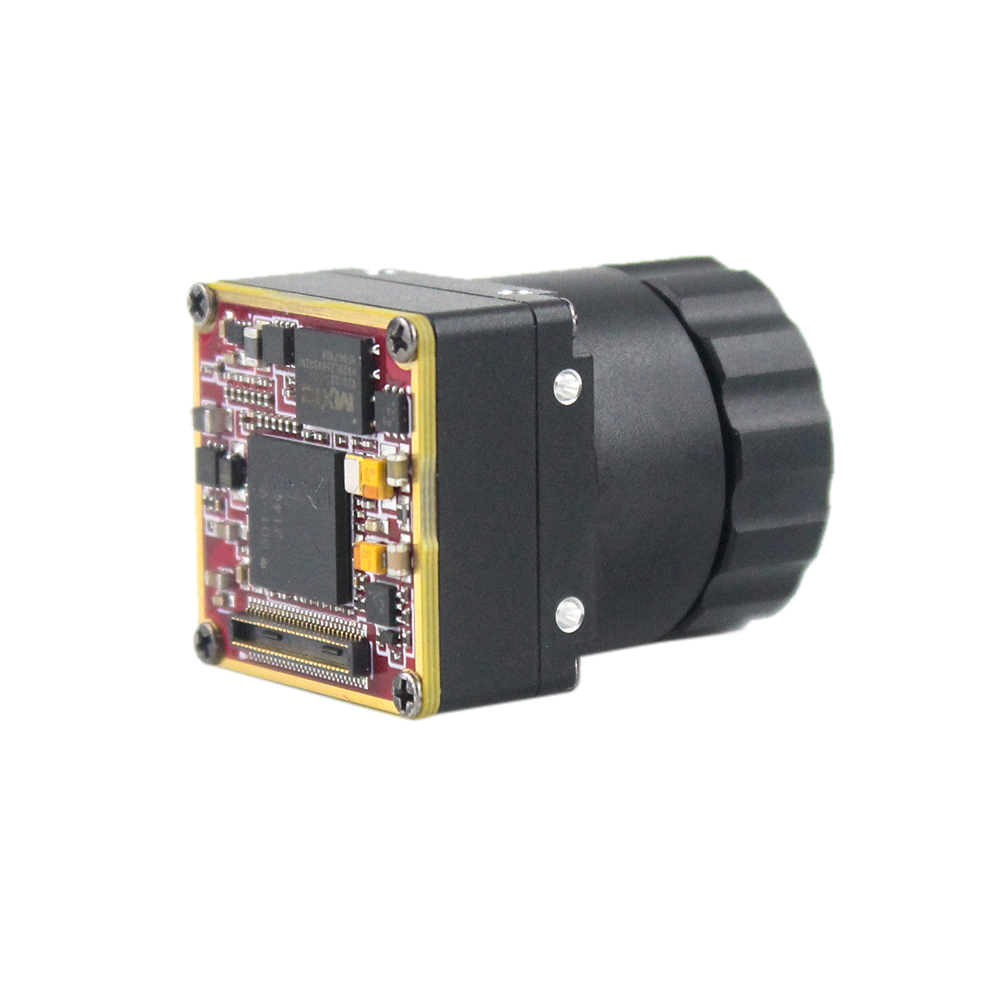

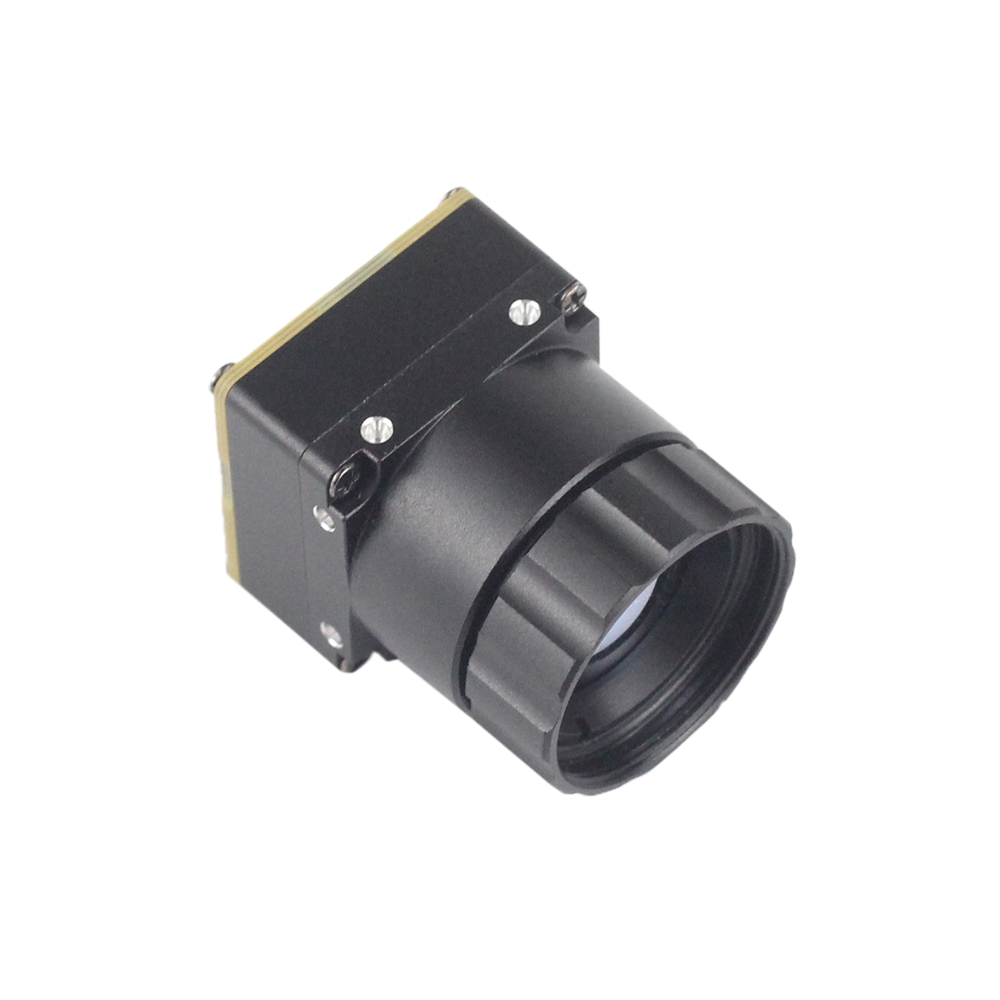

Mini 640 Thermal Camera Uncooled LWIR USB Thermography Module
| Hot Sale Product | Thermal Camera |
|---|
Product Parameter of Mini 640 Uncooled LWIR thermal Camera Module:
Resolution: 640*512
Detector Frame: 25Hz
Pixel Spacing: 12um
Response Wave Band: 8~14um
NETD: <50mK@25°C,F#1.0 (<40mK optional)
Lens Type: 9mm/18mm
Field of View(H×W): 48.7° X38.6°/31.9°X 25.7/24.2°X19.5
Thermal Palettes: White heat; Black heat;
Weight: ＜9g
Size: 21mmx21mm
1.2. Characteristic
Compact & Lightweight Design
• Digital Video: YUV、USB、BT.656
• Analog Video: CVBS、PAL、NTSC
• Serial Communication: UART、RS232、RS422
• Temp Measure Range: From -20℃ to +550℃
Clear Image & Accurate Radiometry
• lmage Processing: TECLESS algorithm/Nonuniformity correction/Digital filtering noise reduction/Digital detail enhancement
• Support regional, point & isotherm temperature measurement
Various Interfaces for Easy Integration
1.3. Applications
Security inspection: industrial monitoring, perimeter scanning, inspection robots, optoelectronic pods
Fire rescue: fire warning, fire helmet
Other specific applications: Drones , power detection and thermal imaging guided missile
